Rugby Medium and Heavy Dump Bodies (Contractor Dump Bodies)
RGY:Contractor Dump Bodies-EQP
Please Call for Availability
800-346-1704
Description

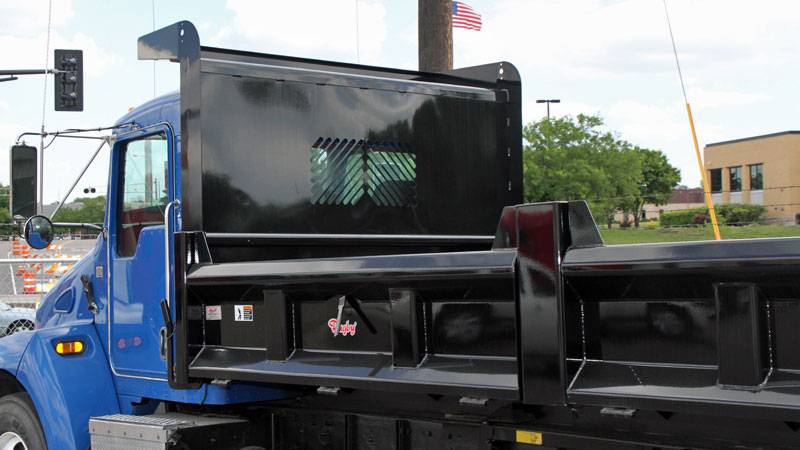

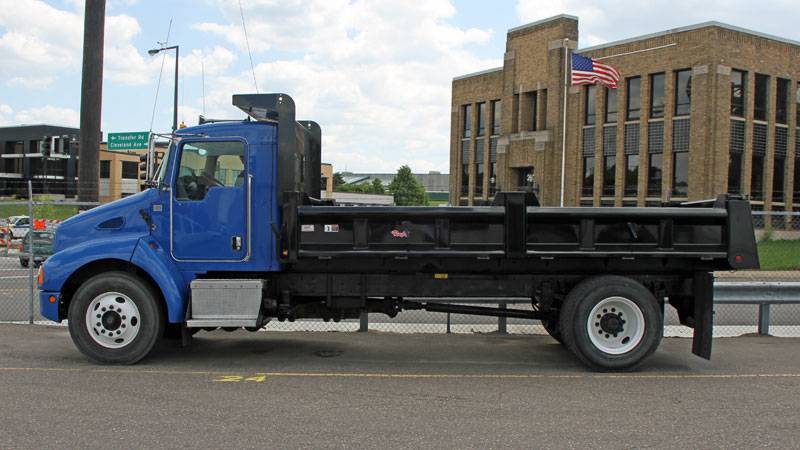

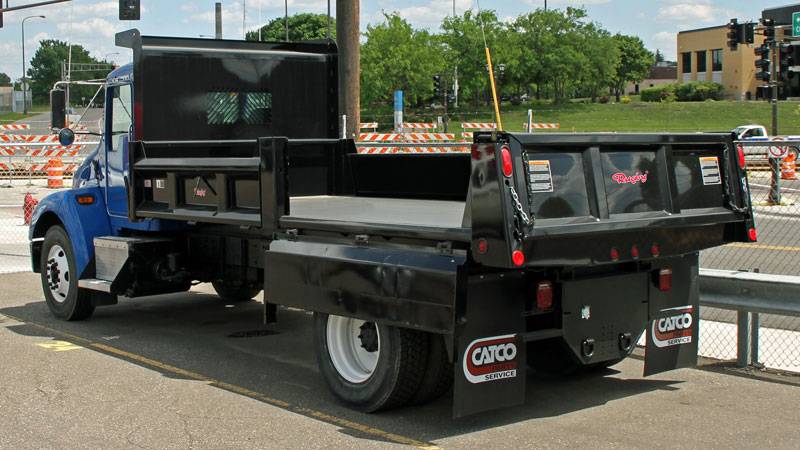

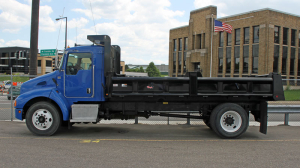

Rugby's Contractor Bodies offer a sleek style and the high quality and durability that you expect. Rugby's Contractor Body has convenient fold-down sides for easy loading and un-loading of material and is available in lengths of 12', 14' and 16' with volume capacities ranging from 4-6 cubic yards.
- Fully boxed dirt shedding top rails.
- 45 degree sloped rub rails.
- Four vertical side braces per side.
- Full depth boxed rear corner posts with concealed hardware for a clean, streamlined look.
- Front panel includes a triple bend horizontal top rail.
- 7" structural channel long sills and 3" i-beam cross sills on 12" centers.
- Rugby products' lighting locations have been designed to assist the installer in meeting FMVSS / CMVSS 108 requirements.
- All appearance corners have radius bends.
- 2 part epoxy primer.
- 1/2 cab shield.
- Independently operated double door sides with removable center post.
- Single pin release system to quickly remove center post.
- Each side door features centrally located quick release lever.
- 2 or 3 heavy duty double strap greaseable hinges per door.

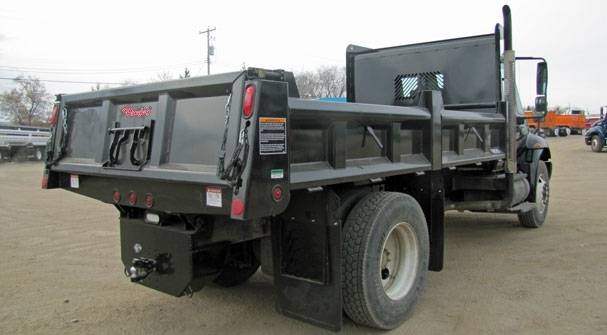

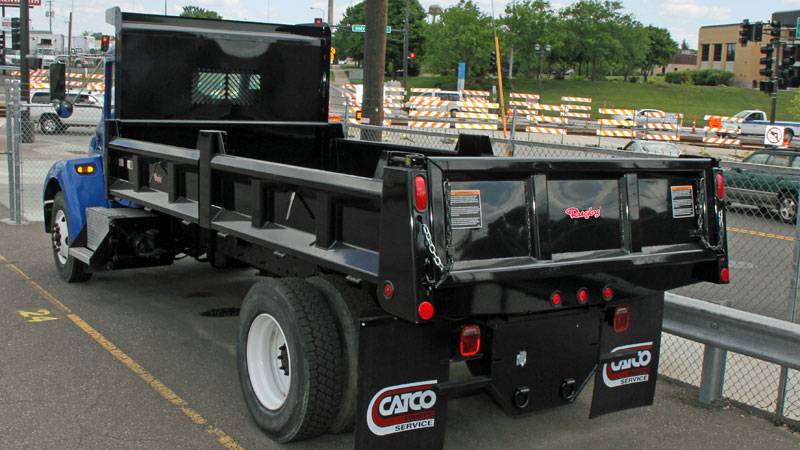

- TAILGATE FEATURES & SPECIFICATIONS Tailgate sloped 10 degree inward. New oval shaped stop/turn/tail light in rear corner posts. EZ - LATCH(TM) upper hardware on tailgate. (patented) 23" end height, four-way tailgate with adjustable rod on trip lever. 10 gauge fully boxed tailgate frame with two vertical braces. Reinforced decking edge at rear of the body. 1 1/4 " diameter top and 1" bottom hinge pins.
- OPTIONS INCLUDE Coal chute door Spreader Apron
Product Series
Warranty
OPTIONS INCLUDE
Coal chute door
Spreader Apron
Coal chute door
Spreader Apron
