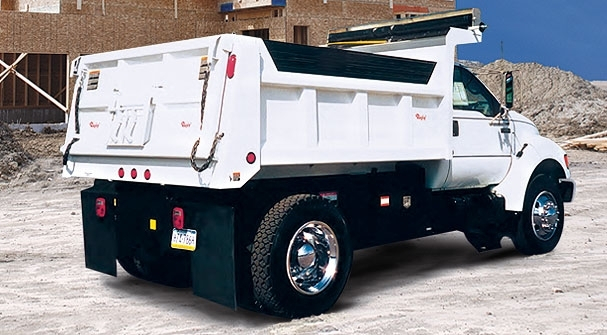

Rugby Medium and Heavy Dump Bodies (Titan Dump Bodies)
RGY:Titan Dump Bodies-EQP
Please Call for Availability
800-346-1704
Description
Rugby's Titan Series Dump Bodies are designed to meet your bigger capacity, class 5-7 needs. Titans feature a sleek yet strong look, a dirt-shedding top rail, 10 degree sloped tailgate and radius front corner posts.
- Sides equipped with brackets for sideboard extensions.
- Fully boxed dirt-shedding top rail.
- 45 degree sloped rub rail.
- Three vertical boxed braces per side.
- Radius front corner posts with recessed clearance lights on lower post.
- Tapered Full height rear corner posts 5 inches deep.
- Front has fully boxed top rail with v-bend reinforced front panel.
- 7" structural channel long sills and 4" I beam cross sills on 12" centers.
- Rugby products' lighting locations have been designed to assist the installer in meeting FMVSS / CMVSS 108 requirements.
- New oval-shaped stop/turn/tail lights in upper rear corner posts with side clearance lights on lower post.
- All appearance corners have radius bends.
- Sloped 1/2 cab shield.
- Optional 3/4 cab shield.
- Optional all 7 gauge on 5/7 yard dump body.
- TAILGATE FEATURES & SPECIFICATIONS Sloped 10 degree inward and recessed flush with rear face of corner posts. Two-way tailgate with adjustable rod on trip lever. Fully boxed frame, reinforced with two tapered verticle braces and one tapered horizontal brace. Angle iron reinforced decking at rear, ensures longer lasting gate seal. Heavy duty 1.25" lower pins on tailgate, upper pivot arms are of .75" plate. Grease fittings on upper pivot arms. Equipped with spreader chains and banjo eye chain holders in corner posts. Optional coal chute door. Optional spreader apron. Optional air tailgate.
