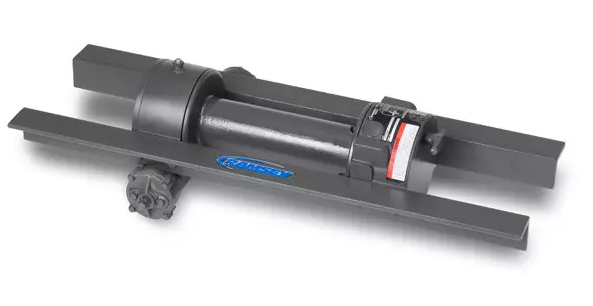

Ramsey HDY-234 Winch (HDY-234)

(0) Reviews: Write first review
RMC:HDY-234-EQP

Please Call for Availability
800-346-1704

Description

  • Rated Line Pull 8,000 Lbs / 3,620 Kg
  • Gear Reduction 34:01:00
  • Weight w/o Cable 105 Lbs / 48 Kg
  • Brake Optional
  • Cable None
  • Drum Size (L x F x B) 6.31 x 7.25 x 3.50 In / 160.3 x 184.2 x 88.9 MM
  • Cable Capacity 75.0 Ft / 22.0 M
  • Recommend Cable Size 3/8 In / 9.0 MM
  • 1st Layer Line Speed 28 Ft/Min / 8.5 M/Min
  • Hydraulic Pressure Required 2,375 PSI
  • Hydraulic Flow Required 15 GPM
  • Motor 4 Cu. In.
  • Additional Motor Options Call Factory
  • Clutch Type Blocked, RAM-LOK(R), DOW-LOK(R), Lever Style
  • Clutch Control Air, Manual
