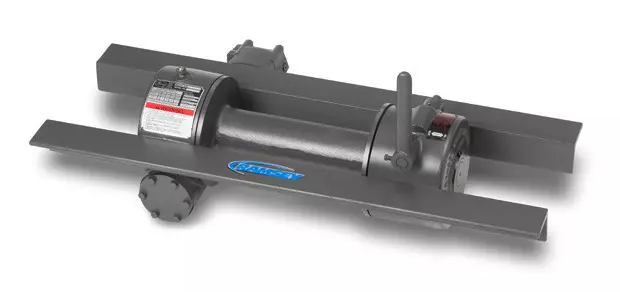

Ramsey HGY-400 Winch (HGY-400)

(0) Reviews: Write first review
RMC:HGY-400-EQP

Please Call for Availability
800-346-1704

Description

  • Meets SAE-J706
  • Rated Line Pull 10,000 Lbs / 4,535.9 Kg
  • Gear Ratio 29:1
  • Weight w/o Cable 160 Lbs / 72.6 Kg
  • Brake "Optional auxiliary brake is available", Yes - brake is self-locking
  • Cable None
  • Drum Size (L x F x B) 8.75 x 7.88 x 4.00 In / 222.3 x 200.2 x 101.6 MM
  • Cable Capacity 105 Ft / 32.0 M
  • Recommend Cable Size 7/16 In / 11.1 MM
  • 1st Layer Line Speed 34 Ft/Min / 10.4 M/Min
  • Hydraulic Pressure Required 2,800 PSI (193.1 Bar)
  • Hydraulic Flow Required 23.0 GPM (87.1 LPM)
  • Motor Size 6.2 Cu. In. / 101.6 cc
  • Additional Motor Options Call Factory
  • Clutch Type Blocked, Lever Style
  • Clutch Control Manual
