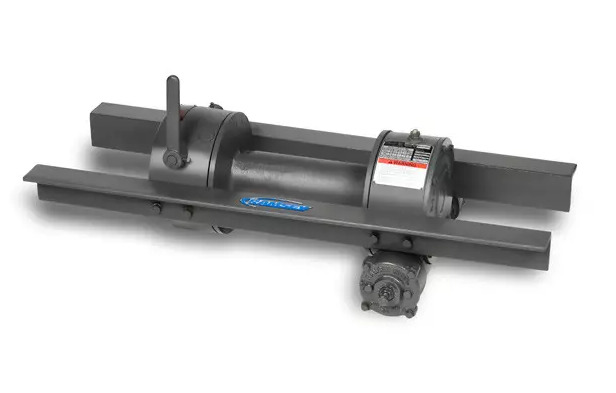

Ramsey HX-600 Winch (HX-600)

(0) Reviews: Write first review
RMC:HX-600-EQP

Please Call for Availability
800-346-1704

Description

  • Meets SAE-J706
  • Rated Line Pull 12,000 Lbs / 5,443.1 Kg
  • Gear Ratio 40:1
  • Weight w/o Cable 195 Lbs / 88.5 Kg
  • Brake Yes - brake is self-locking (Includes auxiliary brake)
  • Cable None
  • Drum Size (L x F x B) 14.69 x 9.50 x 4.00 In / 373.1 x 241.3 x 101.6 MM
  • Cable Capacity 225 Ft / 68.6 M
  • Recommend Cable Size 1/2 In / 12.7 MM
  • 1st Layer Line Speed 25 Ft/Min / 7.6 M/Min
  • Hydraulic Pressure Required 2,750 PSI (189.7 Bar)
  • Hydraulic Flow Required 25.0 GPM (94.6 LPM)
  • Motor Size 6.2 Cu. In. / 101.6 cc
  • Additional Motor Options Call Factory
  • Clutch Type Blocked, Lever Style
  • Clutch Control Manual

Application List

Universal

Details

  • RMC:HX-600-EQP
  • RMC:HX-600-EQP
  • Ramsey
  • New

Categories

Shipping Information

  • Item Requires Shipping
  • 195.0 lbs.
