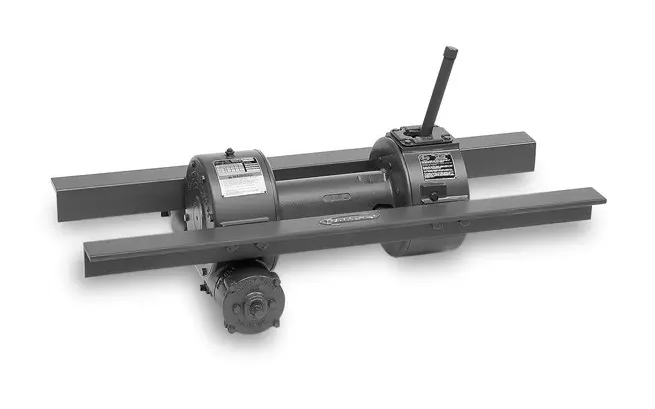

Ramsey HX-700 Winch (HX-700)

(0) Reviews: Write first review
RMC:HX-700-EQP

Please Call for Availability
800-346-1704

Description

  • Meets SAE-J706
  • Rated Line Pull 15,000 Lbs / 6,804 Kg
  • Gear Ratio 35:1
  • Weight w/o Cable 282 Lbs / 128 Kg
  • Brake Yes - brake is self-locking (Includes auxiliary brake)
  • Drum Size (L x F x B) 16.00 x 10.63 x 4.75 In / 406.4 x 270.0 x 120.7 MM
  • Cable Capacity 250 Ft / 76.2 M
  • Recommend Cable Size 9/16 In / 14.3 MM
  • 1st Layer Line Speed 27 Ft/Min / 8.2 M/Min
  • Hydraulic Pressure Required 2,750 PSI (190 Bar)
  • Hydraulic Flow Required 30.0 GPM (114 LPM)
  • Motor Size 9.6 Cu. In. (157 cc)
  • Additional Motor Options Call Factory
  • Clutch Type Blocked, DOW-LOK(R)
  • Clutch Control Air, Manual

Application List

Universal

Details

  • RMC:HX-700-EQP
  • RMC:HX-700-EQP
  • Ramsey
  • New

Categories

Shipping Information

  • Item Requires Shipping
  • 282.0 lbs.
