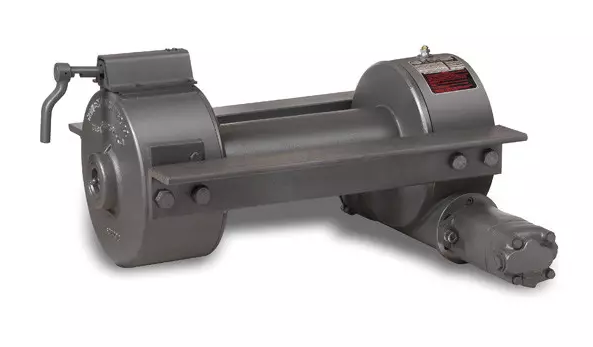

Ramsey HY-800 Winch (HY-800)

(0) Reviews: Write first review
RMC:HY-800-EQP

Please Call for Availability
800-346-1704

Description

  • Meets SAE-J706
  • Rated Line Pull 20,000 Lbs / 9,072 Kg
  • Gear Ratio 40:1
  • Weight w/o Cable 325 Lbs / 147 Kg
  • Brake Yes - brake is self-locking (Includes auxiliary brake)
  • Drum Size (L x F x B) 9.44 x 12.13 x 5.50 In / 239.8 x 308.1 x 139.7 MM
  • Cable Capacity 150 Ft / 45.7 M
  • Recommend Cable Size 5/8 In / 15.9 MM
  • 1st Layer Line Speed 18 Ft/Min / 5.5 M/Min
  • Hydraulic Pressure Required 2,200 PSI (152 Bar)
  • Hydraulic Flow Required 30.0 GPM (114 LPM)
  • Motor Size 14.9 Cu. In. (244 cc)
  • Additional Motor Options Call Factory
  • Clutch Type Blocked, DOW-LOK(R)
  • Clutch Control Air, Manual

Application List

Universal

Details

  • RMC:HY-800-EQP
  • RMC:HY-800-EQP
  • Ramsey
  • New

Categories

Shipping Information

  • Item Requires Shipping
  • 325.0 lbs.
