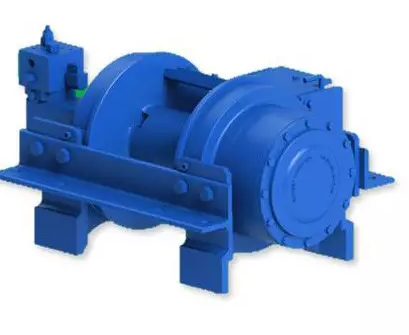

Ramsey HDP 40000 Winch (HDP 40000)

(0) Reviews: Write first review
RMC:HDP 40000-EQP

Please Call for Availability
800-346-1704

Description

  • Internal air-shift free spool
  • Low temperature shifting -54?F
  • Positive locking clutch
  • High efficiency gear set
  • Pneumatic variable pressure cable tensioner
  • Two speed motor - standard (Optional single speed motor)
  • Standard Drum
  • Recommended cable 3/4"
  • Meets SAE J706
  • Note Rated line pull is based on the first layer of cable.
  • 1st Layer Line Speed 24.0 Ft/Min / 7.3 M/Min
  • Gear Ratio 51.35:1
  • Weight w/o Cable 740 Lbs / 336 Kg
  • Brake Yes
  • Drum Size (L x F x B) 11.13 x 17.06 x 7.00 In / 282.7 x 433.3 x 177.8 MM
  • Cable Capacity 235 Ft / 71.6 M

Application List

Universal

Details

  • RMC:HDP 40000-EQP
  • RMC:HDP 40000-EQP
  • Ramsey
  • New

Categories

Shipping Information

  • Item Requires Shipping
  • 740.0 lbs.
