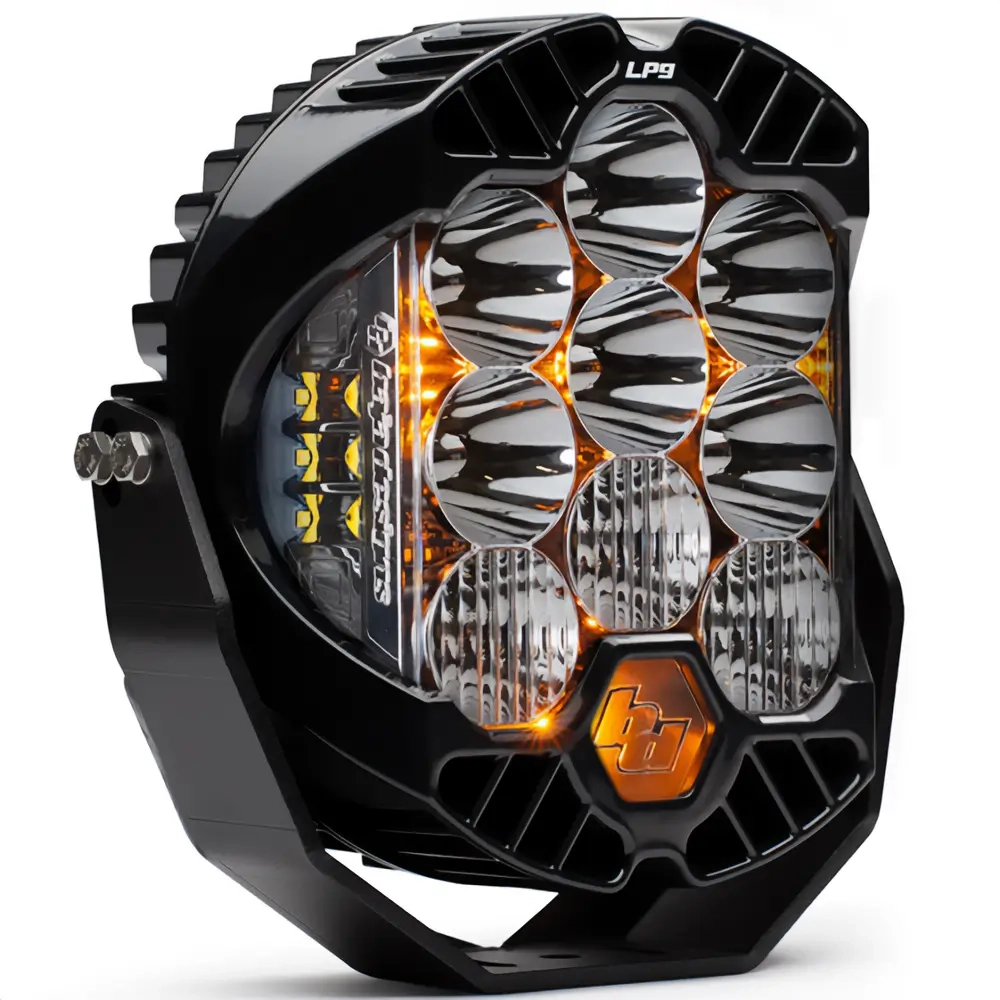

Baja Designs | LP9 LED Light Pod (Driving/Combo)

(0) Reviews: Write first review
FGXX:320003

Availability:

Stock Item: Will ship within 1 business day

Pricing: $617.95

Qty:

Description

A design that was inspired by Baja Designs legendary 8 inch La Paz HID; The LP9 features modern styling and performance, with some of the most advanced LED technologies available today. The LP9 utilizes 9 forward projecting LEDS to produce 11,025 Lumens at 105 watts, and 6 LEDs for Integrated Peripheral Technology (IPT) which produce 1,140 lumens at 10.5 watts per side. The IPT provides an incredible 200 degree spread of usable light.

The housing was designed to provide exceptional heat dispersion by using Direct Ducted Cooling, which allows air to travel from the front of the housing to the rear. With a day-time running light, low, and high power mode light it will fulfill all your lighting needs.

Available in a standard model that is perfect for a wide arrange of off-road use, as well as a Racer Edition configuration that is designed for the demands of high speed driving. The Racer Edition has similar power draw, but produces a much tighter pattern, providing higher visibility at greater distances.
Light Pattern-Driving/Combo: Maximum trail coverage in a single light. The Driving/Combo pattern is equipped with both wide cornering (42 degree) and Spot (9 degree) optics to provide you with a smooth blend of light for both near field applications and distance (Lighting Zone 3)
Baja Designs Features:

  • Satisfactions Guarantee 30 Day Money Back
  • Guarantee
  • Limited Lifetime Warranty Complete Purchase Protection
  • uService Replaceable Lenses And Optics
  • ClearView All The Light, Right Where You Need It.
  • MoistureBlock Waterproof, Rain Proof, Submersible
  • CopperDrive Only LED Driven At 100 percent
  • 5000K Daylight Less Driver Fatigue, Natural Color

Specifications:

  • Forward Projecting Lumens: 11,025 Utilizing 9 LEDs
  • Forward Projecting Wattage/Amps: 105W / 7.6A
  • IPT Lumens: 2,280 Utilizing 6 LEDs
  • IPT Wattage/Amps: 21W / 1.52A

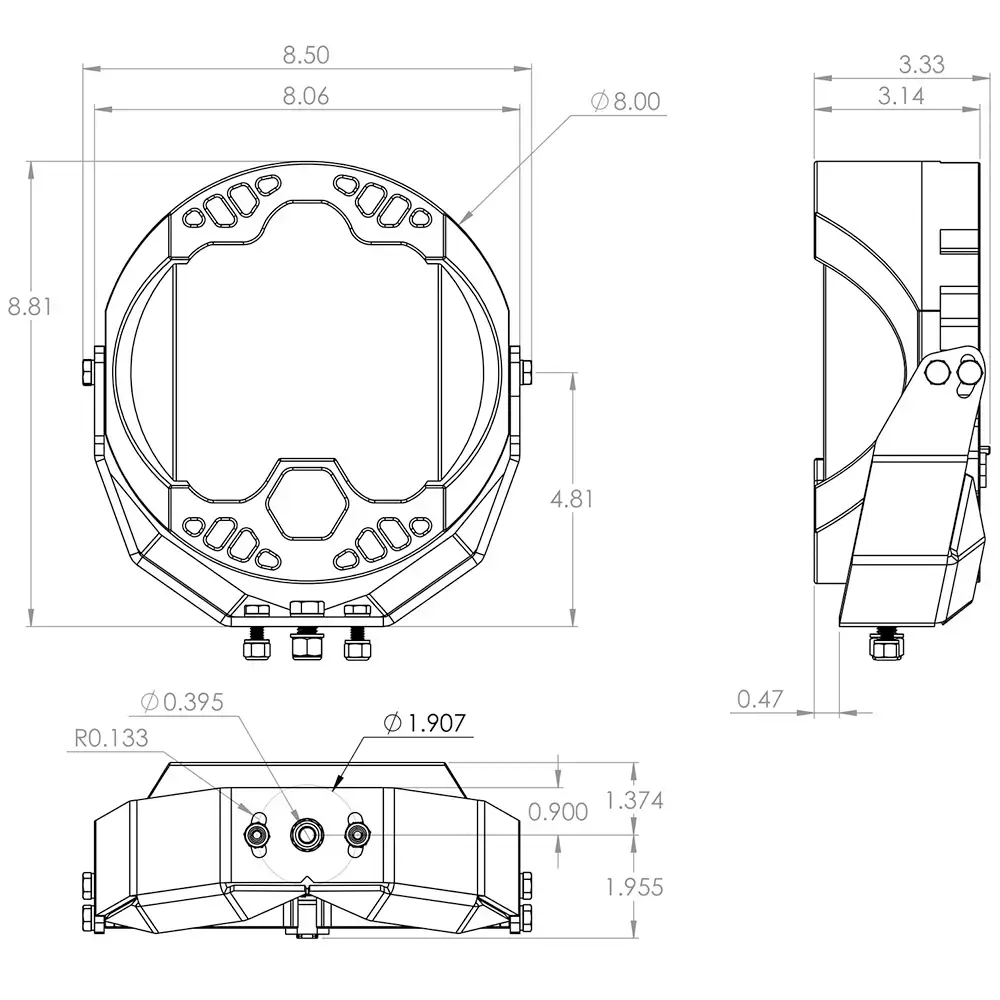

  • Dimensions: 8 inch Diameter/ 3.25 inch Depth
  • Weight: 6.5lbs
  • LED Life Expectancy: 49,930 Hours
  • Front Lens: Hardcoated Polycarbonate
  • Housing: Hard Anodized Machined Aluminum
  • Bezel: Billet Machined Aluminum
  • Hardware and Bracket Material: Stainless Steel
  • Exceeds MIL-STD810G (Mil-Spec Testing)
  • Built-In Overvoltage Protection
  • IP69K (Waterproof up to 9ft and Pressure Washable)
  • IK10 Compliant (Mechanical Impact Testing

CALIFORNIA WARNING: Cancer and Reproductive Harm -www.P65Warnings.ca.gov

Product Series

Video

General Copy

Baja Designs was established in 1993 by a group of individuals who had a strong desire to participate in off-road racing. Baja Designs is a performance-driven and race-proven company that creates and produces goods in the United States of America, right here in San Diego, California, utilizing only the finest components that are currently available. Since the company's inception, Baja has developed innovative strategies for being at the cutting edge of the motorcycle and automotive lighting industries.
The next stage of growth started when Baja engineers and racers moved on to competing in truck and buggy races. The race-winning HID motorbike lights were rapidly transferred by the engineers to their newly developed racing cars. The world of auto racing took to BD HID lights with incredible haste, and by the end of the Baja 1000, they were standard equipment on the vast majority of the winning cars. As a result of this technique, the engineers at BD became widely recognized as "The Scientists of Lights," and professional racing teams began to seek them out to build and aim the lighting on their vehicles.
BD was the first firm to produce a forward projecting LED light bar, which was unveiled and raced in the 2005 Baja 1000. LED lights were the next logical progression of lighting, and BD was the company that led this transition. Since the introduction of the first LED light bar, the company has developed a whole series of LED lights that are unparalleled in terms of their performance and ability to win races.
At BD, revolutionizing industry leading lights is not simply a profession, but rather a lifetime passion for both the proprietors of the company and the workers that work there. As a result of Baja's commitment to creating products that are BRIGHTER, BOLDER, and BETTER, the company has earned the reputation of being "The Scientists of Lighting."

Details

  • FGXX:320003
  • FGXX:320003
  • Baja Designs

  • Stock Item: Will ship within 1 business day

  • New

Categories

Product Series

Shipping Information

  • Item Requires Shipping
  • 6.5 lbs.
  • W10.0000” x H8.0000” x L12.0000”
