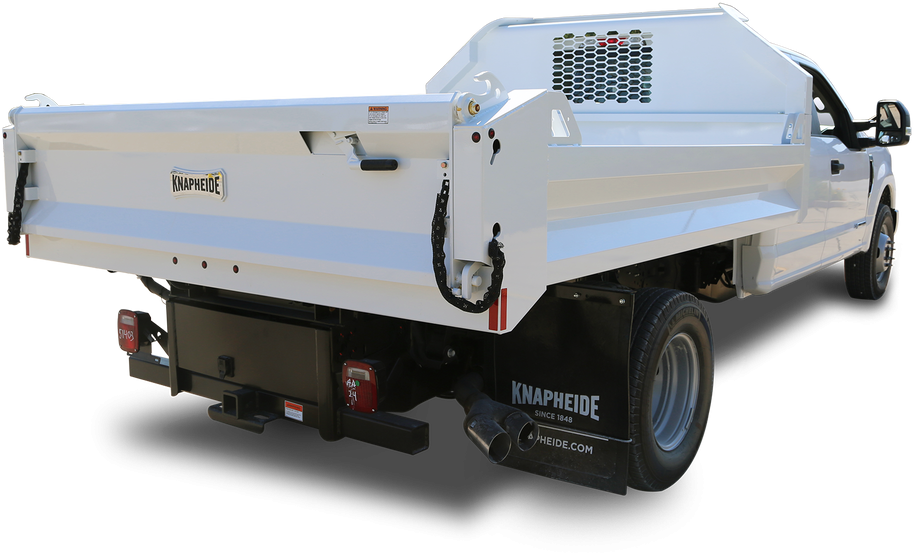

The Knapheide Dump Body is where style, versatility and durability come together. When landscape or general contractors need a productive dump body that will last a lifetime, they choose the Knapheide Dump Body every time. Our dump bodies are available in 9'6" to 11'6" lengths and side heights of 12" or 16" to accommodate 2-1/2 to 4 cubic yard carrying capacity. Models are offered with either stacked crossmembers or crossmemberless understructures and rigid or drop sides. Select from a variety of options to make your dump body a perfect fit.

• Sides and tailgate feature self-cleaningsloped top rails and lower rails
• Toe saver brackets located on bothsides of the end rail for operator safety
• • Crossmemberless models feature two-piece 7-gauge HRCQ steel floor withfull seam weld down the center
  • Stacked crossmember models featuretwo-piece 10-gauge HRCQ steel floorwith full seam weld down the center
• Sides are constructed of 12-gauge hightensile steel
• 2x6 side board pockets at thefront and rear allow for increased load capacity
• • Crossmemberless models (shown inphoto) feature fully boxed long sillsconstructed of 7-gauge HRCQ steeland run the entire length of the floor
  • Stacked crossmember models feature3" structural steel cross sills with 6"structural long sills
• Versatile, double-acting tailgate in order to accommodate both drop-down and pick-up style and spreader applications
  • Double panel tailgate constructionwith 12-gauge HY50 outer panel and10-gauge HY50 inner panel
• Quick release, one-handed lever foreasy drop-down action on the tailgate
• Rear corner posts equipped with ahook on each side for an optional tarp
• Bodies are fully protected with Knapheide's water based undercoat
• Electrodeposition prime-paint systemprovides superior corrosion resistance
• POPULAR OPTIONS: To review the many Popular Options for this body please see PDF. These include:
  • Optional compatible subframe hoists
  • cabprotector options
  • Underbody toolboxes
  • LED lights, tarps, hitch option, metering chute, and more!
