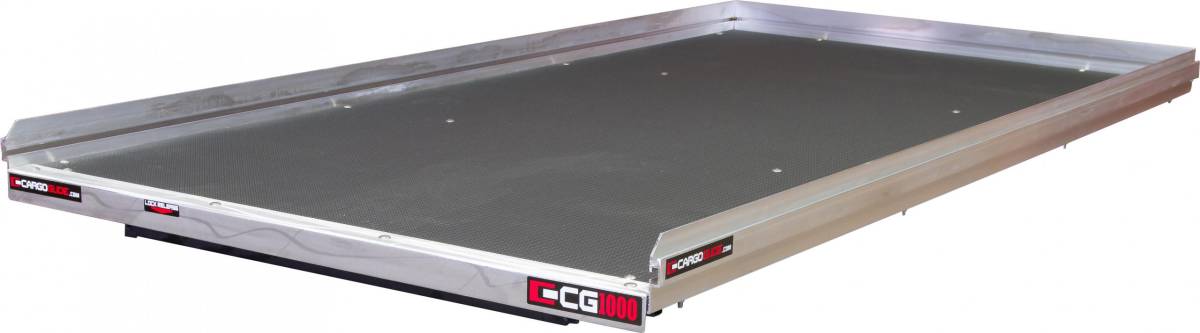

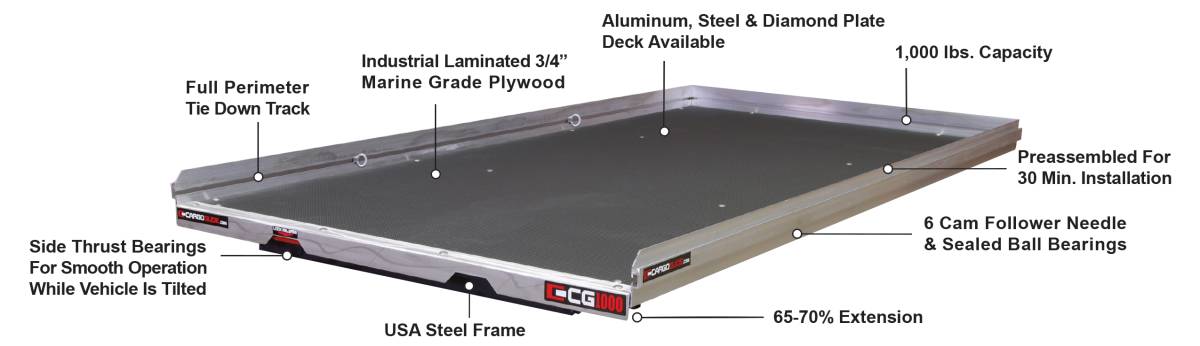

1000 lb capacity. 75 percent of the Cargo Tray Length Slides Out. Sturdy steel frame construction. Real plywood deck with a TPO rubber laminated surface for strength and durability. 6 Industrial Cam Follower Needle and Ball Bearings provide Dependable Lasting support for the Cargo You Haul in Your CargoGlide. Industrial 4 in. high extruded 6061-T6 Thick Aluminum Side Rails with integrated Full Perimeter Tie-Down Tracks and 4 Infinitely Adjustable Eyebolt Tie-Downs to make securing cargo easy and versatile. The outside dimensions for this unit are 58 in. long and 42.25 in. wide. The inside deck surface is 57 in. long and 41 in. wide. Total Deck Height is 3.75 in. Comes fully assembled for easy installation by either 2 people or an available National Dealer Installer. Fits 2017 Colorado and Canyon Short Box.
Details:

• Extension-75 percent
• Work Load Limit-1000 lbs
• Bearings-6
• Tie Down Load Rating-400 lbs per tie down
• Side Rails-4 Inch
• Grab Rail- Based on width of unit
• Deck Height-3.75 Inch
• Material-Steel
• Bearing Load Rating- Combined Load Rating of Bearings 18,584
• Load-2 at 4700 each
• Carrier-2 at 3019 each
• Side Thrust-2 at 1573 each
