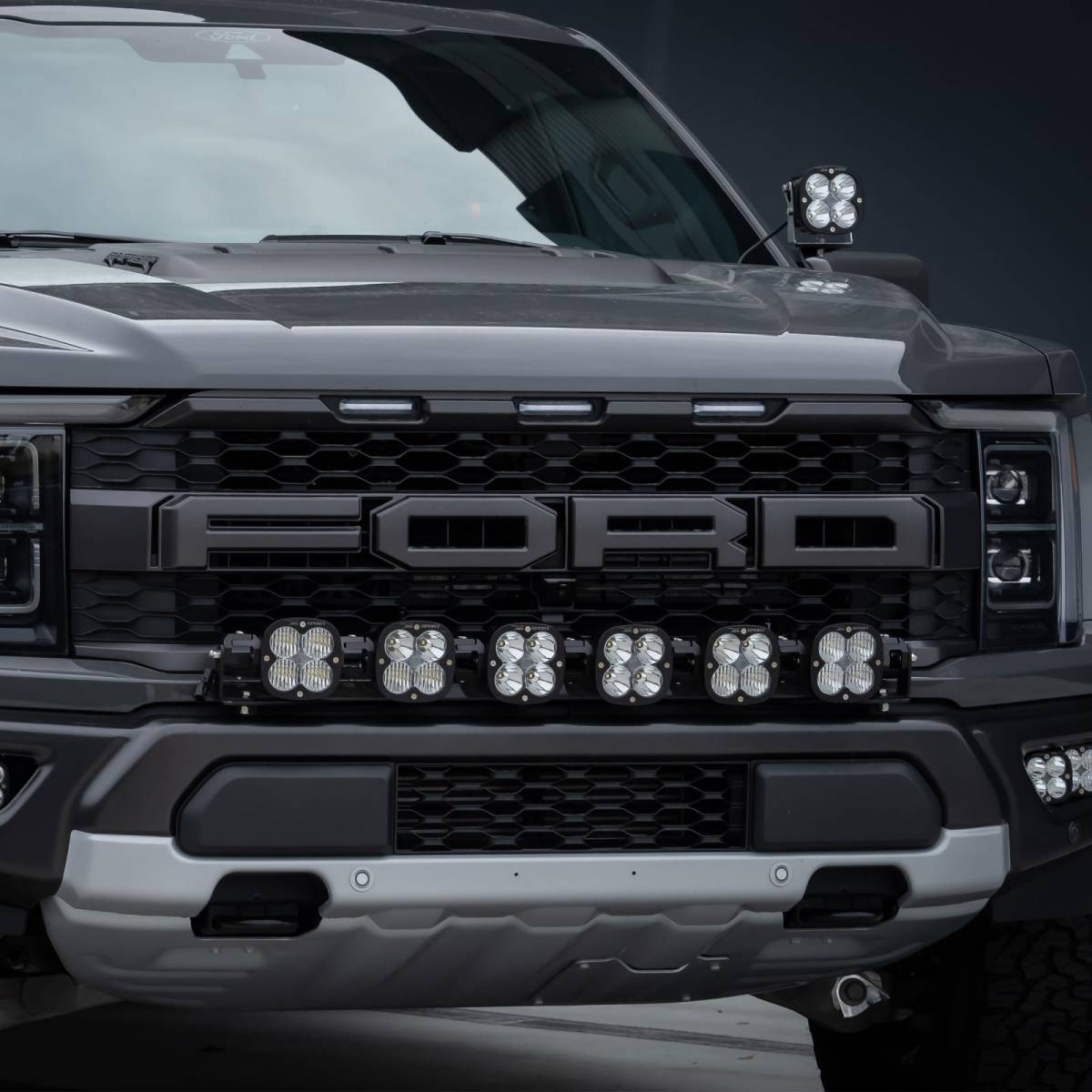

Full adjustment. Total Performance. The 2021-On Ford Raptor 6 XL Linkable kit was designed for the enthusiast looking to take charge with a light package that is completely customizable for their needs.

This kit includes 6 XL Sports, Links, vehicle specific mounting brackets, up-fitter wiring harness and rock guards. A pre-load support bracket is included to ensure stiffness in the most extreme terrain.

Baja Designs Features:

• Satisfactions Guarantee 30 Day Money Back Guarantee
• Limited Lifetime Warranty Complete Purchase Protection
• uServiceReplaceable Lenses And Optics
• ClearViewAll The Light, Right Where You Need It.
• MoistureBlock Waterproof, Rain Proof, Submersible
• CopperDrive Only LED Driven At 100 percent
• 5000K Daylight Less Driver Fatigue, Natural Color

Specifications:

• Lumens: 18,900 Utilizing 24 LEDs
• Wattage/Amps: 156W / 12A
• LED Life Expectancy: 49,930 Hours
• Front Lens: Hard Coated Polycarbonate
• Housing: Powder Coated Cast Aluminum
• Bezel: Billet Machined Aluminum
• Hardware and Bracket Material: Stainless Steel
• Exceeds MIL-STD810G (Mil-Spec Testing)
• Built-In Overvoltage Protection
• IP69K (Waterproof, Submersible to 9ft)
• IK10 Compliant (Mechanical Impact Testing)

Applications:

2021 Ford Raptor

Included:

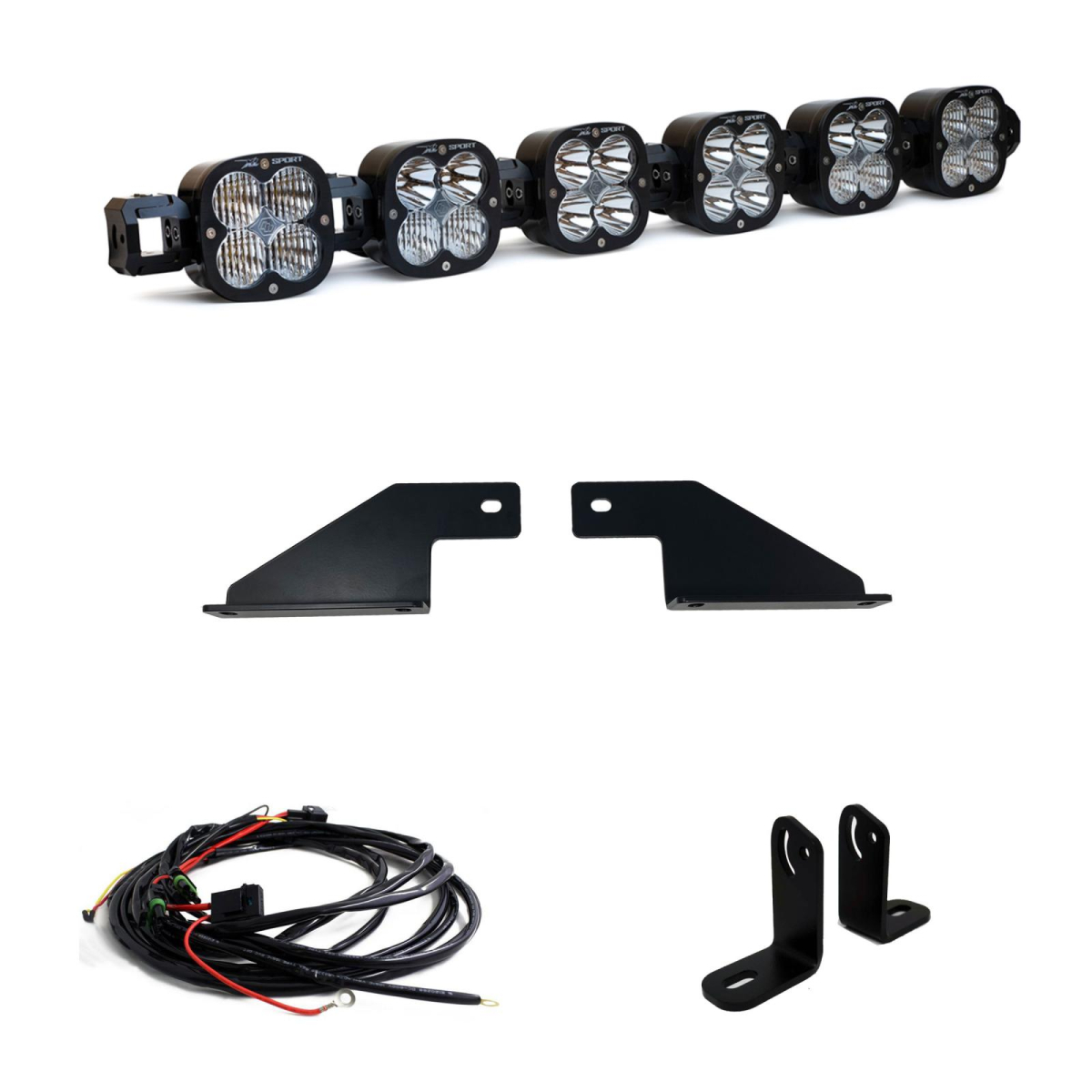

• x1 6 XL Linkable Kit
• x2 Mounting Brackets
• x1 Pre-Load L Bracket Kit
• x1 Wiring Harness
• All necessary hardware

Patterns:

Driving/Combo: Maximum trail coverage in a single light. The Driving/Combo pattern is equipped with both Driving (42 Degree) and spot (9 Degree) optics to provide you with a smooth blend of light for both near field applications and distance (Lighting Zone 3)

Wide Cornering: BD was the first to develop a pattern specifically for cornering, dust and/or fog conditions. The Wide Driving pattern offers a 42 Degree flattened horizontal beam for the ultimate in comfort lighting. (Lighting Zones 1 and 2)

Spot: A longer and narrower 9 Degree beam focus for illumination further down the trail or road. The Spot pattern is designed to be used in conjunction with additional Wide Driving and/or Driving/Combo beam lights. (Lighting Zone 4 and 5)
