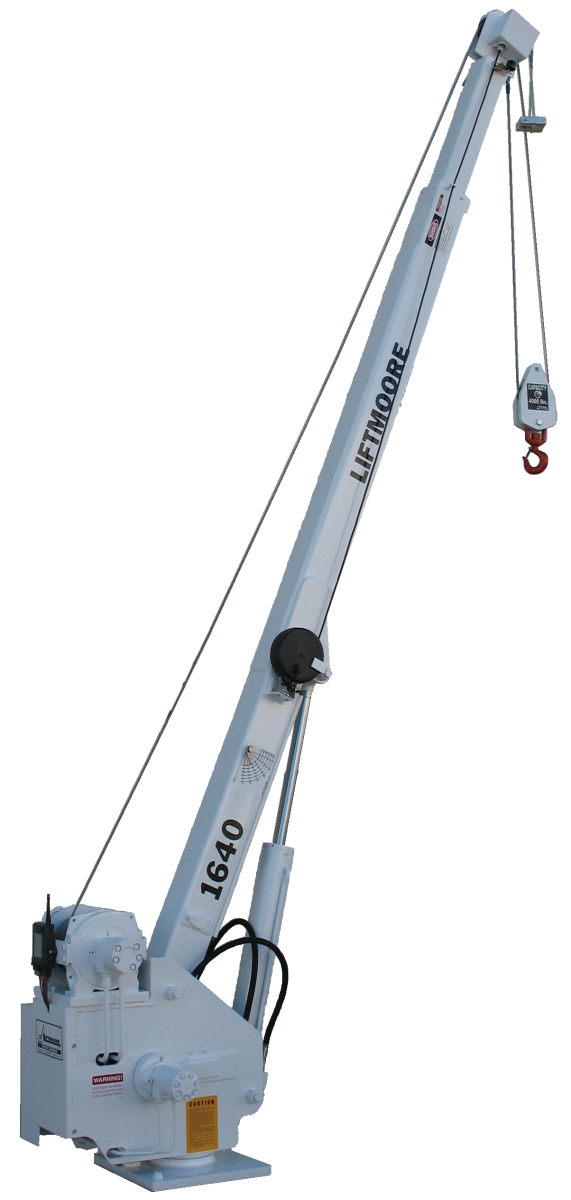

Liftmoore Hydraulic Crane: 1640XP Series (1640XP-20)
LIFT:1640XP-20-EQP
Hydraulic Crane with 16,000 ft.-lb. moment rating and 4,000 lb. max capacity
Please Call for Availability
800-346-1704
Description
Hydraulic Crane with Maximum Capacity 4,000 Lbs. at 4 Ft. Load radius
- Maximum Capacity 4,000 Lbs. at 4 Ft. Load radius
- Planetary Gear Winch - single line speed 30 fpm at 5 gpm
- Proportional hydraulic control System Standard
- Wireless Radio Remote Control with E-Stop & audible signal function.
- Galvanized Aircraft Cable 1/4" x 70 Ft. (7,000 Lb. Breaking Strength)
- Travel Block w/ swivel block For easy two part line hook up
- Counter balance valve (holding valve on all cylinders)
- Power Rotation - 365 degree Boom Elevation - Full Power (-5 Deg. To 75 Deg.)
- Power boom extension from 10 to 16 Ft. with manual to 20 Ft.
- Overload Protection System
- Anti-Two Block System
- Meets requirements of 29 CFR 1910.180, ANSI B30.5, SAE J1063
- Mounting plate is 15" square with a 12" square bolt pattern
- Included: Battery Power Cable 10 Ga. x 25 Ft. with toggle switch, switch bracket, terminal rings & fuse for the required DC power connection to vehicle. Mounting Bolts Grade 8: 0.75" x 3.00" (Four). Bubble Level . Crane-Truck Stability Plate . Recommended Installation Instructions. Owners Manual
- Requirements: PTO, Pump, Reservoir and Hoses Pump should supply 6 GPM at 2750 PSI. Installer responsible for meeting OSHA stability requirements of 29 CFR -1910.180 (c)(1). Boom Rest (P.N. 27860 for service body or P.N. 22158 for flat bed).
- Recommended: Adjustable pressure relief & flow control valves will ensure that the best optimum performance can be obtained. 18K Outriggers for meeting vehicle stability requirements. Minimum Recommended Vehicle GVWR 14,500 lbs.
