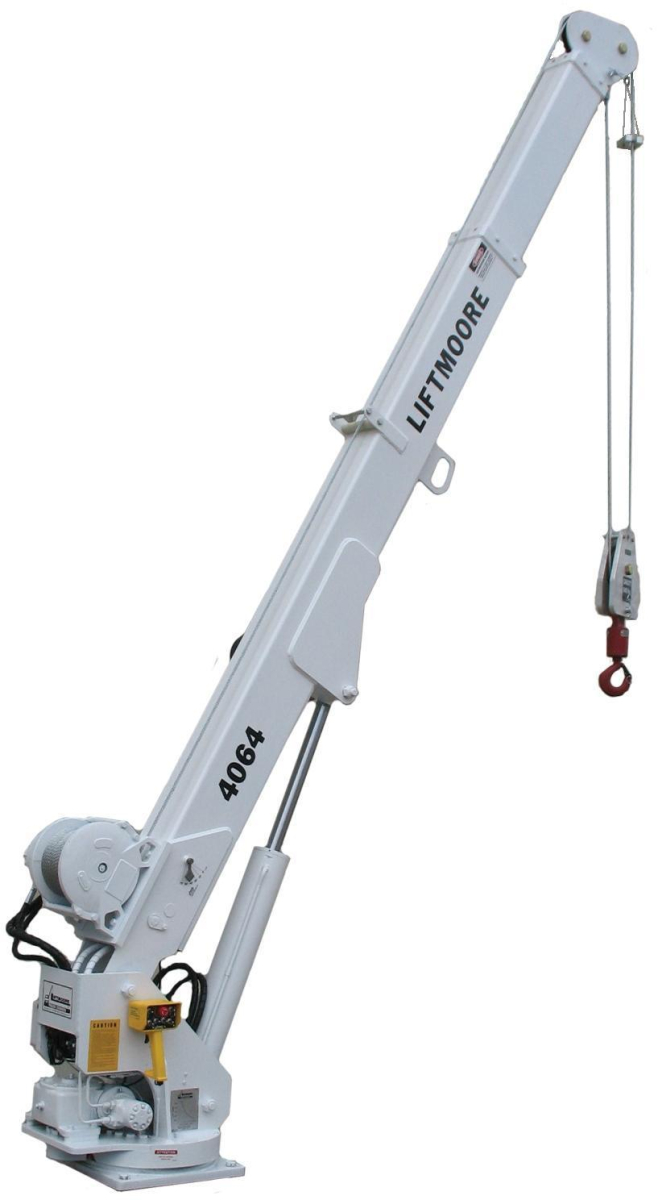

Liftmoore Hydraulic Crane: 4064DXP Series (4064DXP-22)
LIFT:4064DXP-22-EQP
Hydraulic Crane with 40,000 ft.-lb. moment rating and 6,400 lb. max capacity
Please Call for Availability
800-346-1704
Description
Hydraulic Crane with Maximum Capacity 6,400 Lbs. at 6.2 Ft. Load Radius
- Maximum Capacity 6,400 Lbs. at 6.2 Ft. Load Radius
- Planetary Gear Winch - single line speed 45 fpm at 8 gpm
- Proportional Hydraulic Control System Standard
- Wireless Radio Remote Control with E-Stop & audible signal function
- Galvanized Aircraft Cable 3/8" x 95 Ft. (14,400 Lb. Breaking Strength)
- Traveling Block with Roller Bearing Swivel Safety Hook
- Power Rotation - Unlimited Boom Elevation - Full Power (-5 Deg. To 75 Deg.)
- Boom Extension - Full Power (10 Ft. - 22 Ft.)
- Counter balance valve (holding valve on all cylinders)
- Overload Protection System
- Anti-Two Block System
- Meets requirements of 29 CFR 1910.180, ANSI B30.5 and SAE J1063
- Mounting Plate is 17 3/4" square with a 14 3/4" square bolt pattern
- Included: Battery Power Cable 10 Ga. x 25 Ft. with toggle switch, switch bracket, terminal rings & fuse for the required DC power connection to vehicle. Bubble Level . Crane-Truck Stability Plate. Recommended Installation Instructions. Owners Manual.
- Requirements: PTO, Pump, Reservoir and Hoses. Pump should supply 8 GPM at 2750 PSI. Mounting Bolts Grade 8: 7/8" Dia. (4). Installer responsible for meeting OSHA stability requirements of 29 CFR -1910.180 (c)(1). Boom Rest (P.N. 27818 for service body or 24589 for flat bed)
- Recommended: Adjustable pressure relief & flow control valves will ensure that the best optimum performance can be obtained. 40K Outriggers for meeting vehicle stability requirements. Minimum Recommended Vehicle GVWR 19,500 lbs.
