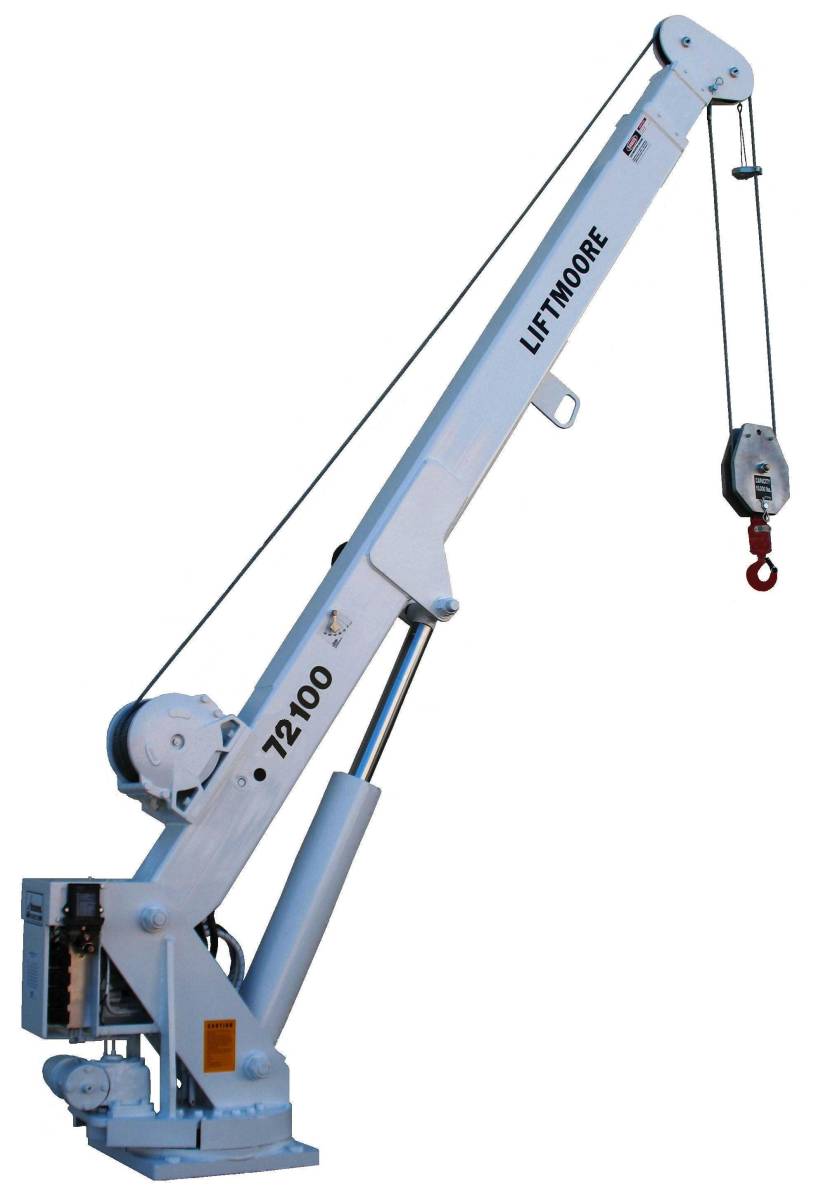

Liftmoore Hydraulic Crane: 72100DXP Series (72100DXP-24)

LIFT:72100DXP-24-EQP

Hydraulic Crane with 72,000 ft.-lb. moment rating and 10,000 lb. max capacity

Please Call for Availability
800-346-1704

Description

Hydraulic Crane with Maximum Capacity 10,000 Lbs. at 7.2 Ft. Load Radius.
  • Maximum Capacity 10,000 Lbs. at 7.2 Ft. Load Radius.
  • Planetary Gear Winch - single line speed 45 fpm at 8 gpm
  • Proportional Hydraulic Control System Standard
  • Wireless Radio Remote Controls with E-Stop & audible signal function
  • Galvanized Aircraft Cable 7/16" x 100 Ft. (17,600 Lb. Breaking Strength)
  • Traveling Block with Ball Bearing Swivel Safety Hook
  • Power Rotation - Unlimited Boom Elevation - Full Power (-5 Deg. To 75 Deg.)
  • Boom Extension - Full Power (11' - 24')
  • Counter balance valve (holding valve on all cylinders)
  • Overload Protection System
  • Anti-Two Block System
  • Meets requirements of 29 CFR 1910.180, ANSI B30.5, SAE J1063
  • Mounting Plate is 21" Square with a 15.5" X 18.5" bolt pattern
  • Included: Battery Power Cable 10 Ga. x 25 Ft. with toggle switch, switch bracket, terminal rings & fuse for the required DC power connection to vehicle. Bubble Level . Crane-Truck Stability Plate. Recommended Installation Instructions. Owners Manual.
  • Requirements: PTO, Pump, Reservoir, Filter and Hoses. 8 GPM at 2750 PSI for optimal performance. Mounting Bolts Grade 8: 1.25" Dia. (4). Installer responsible for meeting OSHA stability requirements of 29 CFR -1910.180 (c)(1). Boom Rest (P.N. 26718 service body when stowing above horizontal, 22842 for flat bed)
  • Recommended: Adjustable pressure relief & flow control valves will ensure that the best optimum performance can be obtained. 72K Outriggers for meeting vehicle stability requirements. Minimum Recommended Vehicle GVWR 30,000 lbs.
