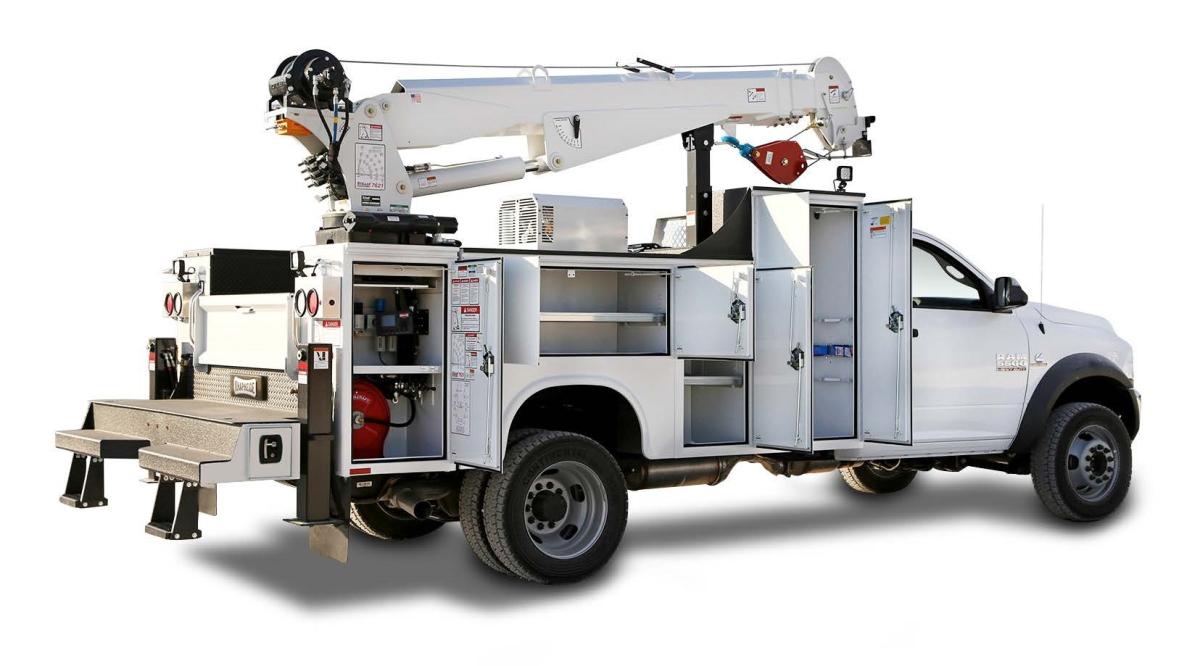

Knapheide Mechanics Trucks come equipped with standard features to help you get the job done. With secure side compartments and an oversized cargo space, you can carry everything you need. Choose a Knapheide Mechanics Truck for the durability and functionality that stands above the rest. The Knapheide KMT1 is purpose-built with heavy duty technicians and mechanics in mind. These bodies are built for crane load capacities of up to 7,500 lb. Knapheide KMT1 Mechanics Trucks are compatible with Class 5 trucks.

• Crane Body Understructure:
  • Unique torq-isolator crane support system transfers lift forces into the full length torsion box subframe and outriggers, and not the side compartments
  • Reinforced rear vertical curb side compartment is independent of all other side compartments, eliminating flexing and twisting of side packs
• Double paneled doors made of galvanneal steel (14-gauge outer panel, 20-gauge inner panel) are reinforced with internal braces for durability
• Hydraulic out-and-down curb side outrigger and hydraulic down street side outrigger for crane stability during lifting operations
• 38,000 ft-lb. crane with 21' hydraulic reach, provided by a two-stage hydraulic extension
• Planetary winch provides a 60 ft. per minute single line speed
• Hexagonal boom eliminates boom flex and lateral movement for ultimate stability
• Up to 40 CFM reciprocating hydraulic compressor
• 50'x1/2" compressor hose reel and roller fairlead through curb side vertical compartment
• Neoprene door seals protect compartments from the weather
• Continuous stainless steel hinges are pry-proof and corrosion-resistant
• Includes 250-lb. capacity adjustable divider shelves
• Two heavy duty aluminum grab handles installed on both sides at rear of the body for easy cargo access
• 16" high double panel slam tailgate with center latch and flat space for displaying company graphics
• UV-resistant ABS external light boxes on the rear support and house LED S/T/T and B/U lights, LED marker lights and LED low-light work lights
• Welded-on cab protector with fully punched window for visibility
• Polyethylene formed drip pan with drain hose placed under the crane to keep the remainder of the crane compartment dry
• E-lock capability on automotive grade 3-point T-handles
• Knap-liner applied to cargo floor, sides, compartment tops, bulkhead, bumper and tailgate for durability
• Knap-liner work surface bumper with lockable through compartment, a vise plate, and two grip strut flex steps
• Master locking system locks down all compartments on one side with one motion
• Vertical compartment doors employ double-spring over-center retainer to eliminate involuntary swing
• (4) LED work lights installed (2 at front, 2 at rear) for low-light working conditions
• Bodies are fully protected with Knapheide's water-based undercoat
• Electrodeposition prime-paint system provides superior corrosion resistance
• Other features:
  • Extreme duty aluminum mechanic 7-drawer set on street side
  • Sortimo part storage containers in horizontal compartment on street side
  • Multi-function radio remote control provides convenient complete control of the crane
  • 6 D-ring cargo tie downs installed in the cargo floor with a 6,000-lb. capacity
  • Floor is comprised of 3/16" tread plate
  • Compartment bottoms and end panels comprised of 12-gauge galvanneal steel
  • Knapheide controller: power cell, controller and (8) button switch panel in the rear crane compartment. CAN bus system with continuous working load of 115 amps. Features a built-in overload current protection for system and operator safety.
  • Upgrade to optional, in-cab control display that can operate all functions from the driver seat or add in a (4) switch lighting controller to the L1V compartment.
• POPULAR OPTIONS:
  • To review the many Popular Options for this body please see PDF
