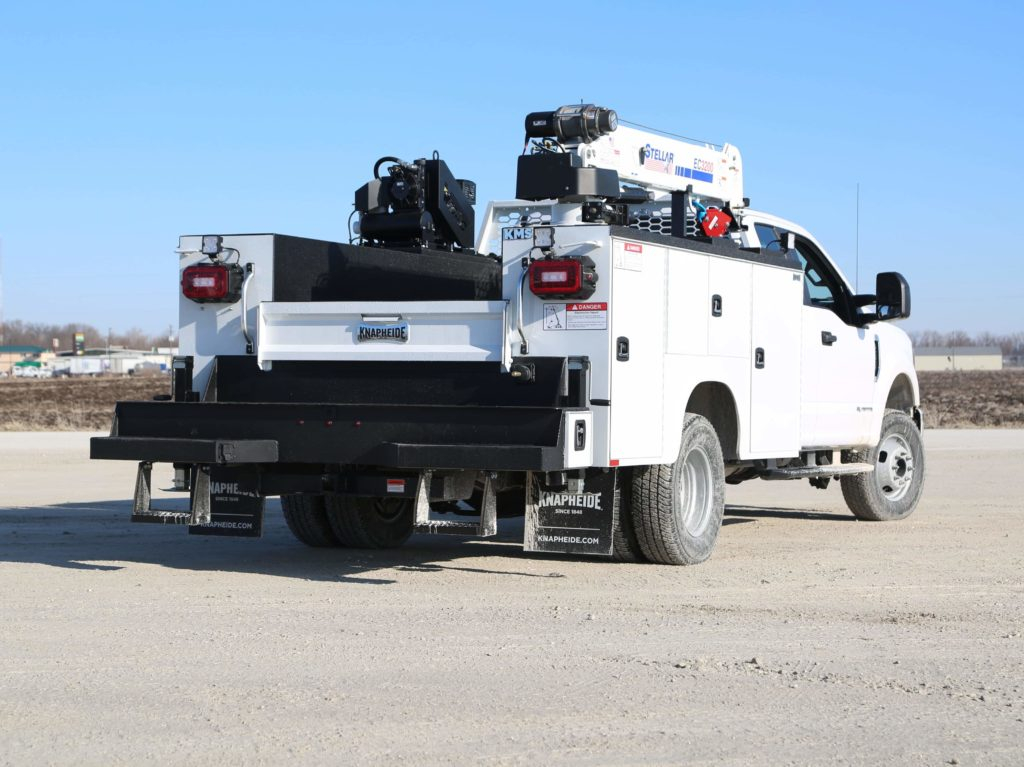

Knapheide Mechanics Trucks come equipped with standard features to help you get the job done. With secure side compartments and an oversized cargo space, you can carry everything you need. Choose a Knapheide Mechanics Truck for the durability and functionality that stands above the rest. Knapheide KMS16 trucks are equipped with an electric crane, while KMS30 trucks have the option of either an electric or hydraulic crane for lifting applications. Both are compatible with Class 3–5 trucks.

• • Full-length torsion box subframe
  • Reinforced rear vertical curb side compartment eliminates flexing and twisting of side packs
• • Double paneled doors made of 20-gauge galvanneal steel are reinforced with internal braces for durability
  • Compartment tops, backs, floors and end panels are comprised of 14-gauge galvanized steel
• One manual outrigger for crane stability during lifting operations
• Up to 16,000 ft-lb. crane with 20' reach
• Planetary winch provides a 15 ft. per minute single line speed
• • Knapheide controller: power cell, controller and (8) button switch panel in the rear crane compartment. CAN bus system with continuous working load of 115 amps. Features a built-in overload current protection for system and operator safety.
  • Upgrade to optional, in-cab control display that can operate all functions from the driver seat or add in a (4) switch lighting controller to the L1V compartment.
• Floor is comprised of 1/8" tread plate
• Neoprene door seals protect compartments from the weather
• Continuous stainless steel hinges are pry-proof and corrosion-resistant
• Includes 250-lb. capacity adjustable divider shelves
• Two heavy duty aluminum grab handles installed on both sides at rear of the body for easy cargo access
• Double panel slam tailgate with center latch
• UV-resistant ABS external light boxes on the rear support and house LED S/T/T and B/U lights, LED marker lights and LED low-light work lights
• Welded-on cab protector with fully punched window for visibility
• (6) cargo tie-downs installed in the cargo area with a 2,000-lb. capacity
• E-lock capability on automotive grade 3-point T-handles
• Knap-liner applied to cargo floor, sides, compartment tops, bulkhead, bumper and tailgate for durability
• • Knap-liner work surface bumper (KMS16)
  • Knap-liner work surface bumper with vise plate and two grip strut flex steps (KMS30)
• Master locking system locks down all compartments on one side with one motion
• Vertical compartment doors employ double-spring over-center retainer to eliminate involuntary swing
• (2) LED work lights recessed in bulkhead for low-light working conditions
• Bodies are fully protected with Knapheide's water-based undercoat
• Electrodeposition prime-paint system provides superior corrosion resistance
• • Aluminum mechanic 7-drawer set
  • Sortimo part storage containers in street side second vertical compartment
• POPULAR OPTIONS:
  • To review the many Popular Options for this body please see PDF
