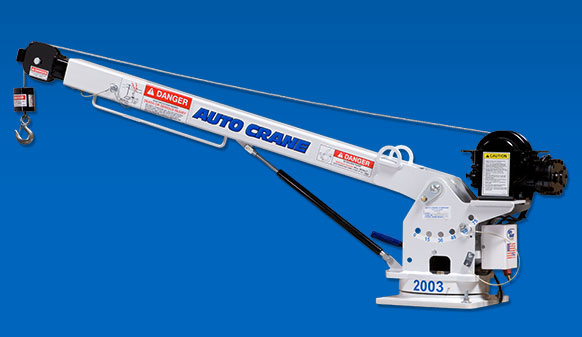

Electric Crane with a 6,000 ft lb (0.8 ton-m) moment rating and a maximum lifting capacity of 2,000 lb (907 kg) at 3 ft (0.9 m), Manual boom extends from 5' 8" (1.73 m) to 9' 3" ft. (2.82 m), and 360 Degrees continuous manual rotation with manual brake)
- 15 ft. (4.5 m) remote control pendant
- 25 ft. of 1/4" 7000 lbs. breaking strength cable
- 22 ft. high current battery cable
- 6-position boom elevation
- Stowed Boom Length: 5' 8" (1.73 m)
- Extended Boom Length: 9' 3" (2.74 m)
- Width: 1' 7" (.48 m)
- Height: 2' (.6 m)
- Base Plate Dimensions: 1' 4" x 1' 6" (.41 m x .45 m)
- Single Line Speed: 30 ft/min (9.17 m/min)
- 12 volt DC, series wound, 1.9 hp hoist motor
- Requirements- Truck must be equipped with jackleg extending minimum 3' 3" (1 m) from centerline of truck. 8,000 GVWR minimum chassis requirement. (Does not include bodies and accessories). Battery Information: 575 amp cold cranking rating, 130 minute reserve capacity, maintenance type battery required for 12 volt DC operation. 70 amp minimum truck alternator required.
Limited two-year factory warranty
Tulsa, Oklahoma is home to Auto Crane's headquarters. We develop, design, and produce a broad range of truck-mounted electric and hydraulic cranes, crane bodies, crane control technology, and accessories. Our cranes may be powered by either hydraulic or electric systems. Our company's name and wares are well-known and widely utilized across the industrial sectors of the global economy, including the energy, mining, construction, forestry, and railroad industries, among others. The Auto Crane brand is an American one, and all of their products are still proudly manufactured in the United States.
Another first for the industry, our unique NexStarTM crane management system is able to give full power and entire proportional control for precise load handling with the convenience of being remote-controlled. When combined with our unique Titan crane bodies, this cutting-edge technology enables Auto Crane to be the most productive and safest service crane on the market.
Since we opened our doors in 1958, our only mission has been to develop items that provide the greatest possible value to our clientele in a variety of important ways. It is both our desire and our passion to continue to be at the forefront of the most ground-breaking innovations in our business. You can rely on Auto Crane for many years to come since the company has led the industry for more than 60 years.
