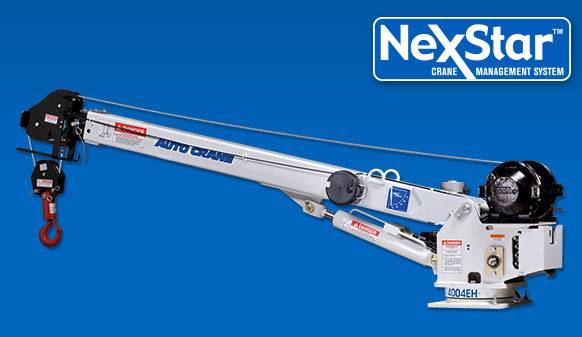

Auto Crane | Electric Over Hydraulic Crane (4004EH Series: NexStar Models)

EOH4004EH Series: NexStar Models-EQP

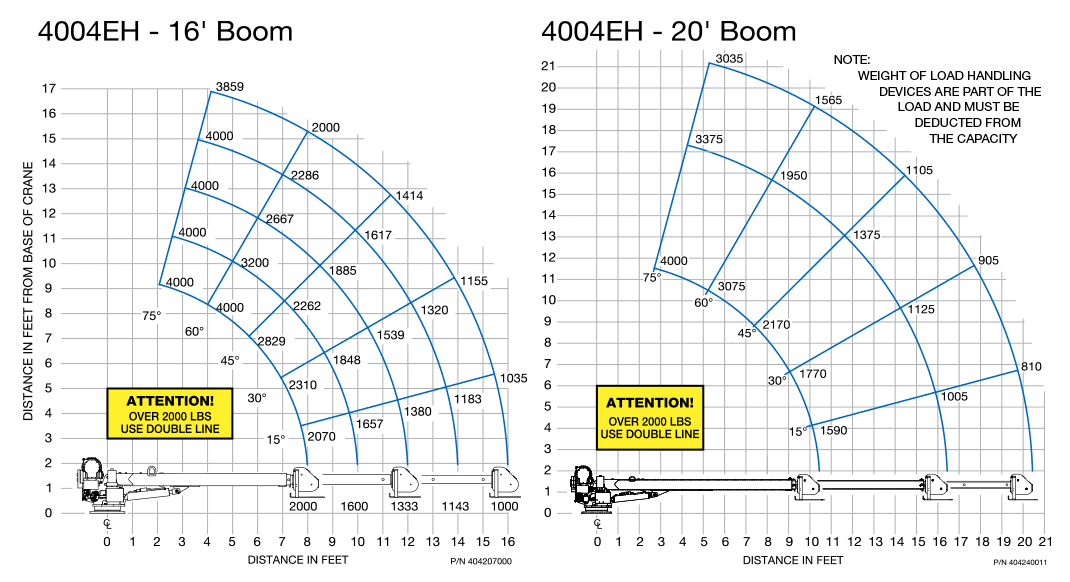

Electric Over Hydraulic Crane with a 16,000 ft lb (2.2 ton-m) moment rating and a maximum lifting capacity of 4,000 lb (1,812 kg) at 4 ft (1.2 m)

Please Call for Availability
800-346-1704

Description

Electric Over Hydraulic Crane with a 16,000 ft lb (2.2 ton-m) moment rating and a maximum lifting capacity of 4,000 lb (1,812 kg) at 4 ft (1.2 m)
  • Proportional control of multiple functions simultaneously and independently Adjust any function anytime to a different speed, for total control over the load
  • Level sensors monitor the angle of the truck and crane with the NexStar FM remote system on a Titan crane body Prevents operation in unsafe, unlevel conditions
  • Automatic stop at 100% load capacity Keeps people, equipment, and loads safer
  • Adjustable speed settings; from 25% to 100% Enables fine tuning of speeds for total control over the load
  • The NexStar FM remote system receiver displays load-monitoring and diagnostic readouts in plain English No codes to look-up or memorize; operator views precise percentage load capacity
  • NexStar available with either tethered or fully-featured wireless remote options Your choice for preferred control method
  • Transmitter is IP66 rated and CE certified Sealed and water protected for maximum durability
  • 80 ft (24.3 m) of 5/16" (8 mm) aircraft quality cable
  • Stowed Boom Length: 9' 10.5" (3 m) / 11' 11" (3.63 m)
  • Extended Boom Length: Width: 1' 10" (.56 m)
  • Width: 1' 10" (.56 m)
  • Height: 2' 3" (.69 m)
  • Base Plate Dimensions: 16.75" x 13.5" (.43 m x .34 m)
  • Single Line Speed: 30 ft/min (9.17 m/min)
  • 4.8 hp 12 volt DC hoist motor
  • OSHA 1910.180 ANSI B30.5
  • Requirements- Truck must be equipped with jackleg extending minimum 3' 9" (1.14 m) from centerline of truck. 8,800 GVWR minimum chassis requirement. (Does not include bodies and accessories). Battery Information: 575 amp cold cranking rating, 130 minute reserve capacity, maintenance type battery required for 12 volt DC operation. 70 amp minimum truck alternator required.

Warranty

Limited two-year factory warranty

Application List

Universal

General Copy

Tulsa, Oklahoma is home to Auto Crane's headquarters. We develop, design, and produce a broad range of truck-mounted electric and hydraulic cranes, crane bodies, crane control technology, and accessories. Our cranes may be powered by either hydraulic or electric systems. Our company's name and wares are well-known and widely utilized across the industrial sectors of the global economy, including the energy, mining, construction, forestry, and railroad industries, among others. The Auto Crane brand is an American one, and all of their products are still proudly manufactured in the United States.
Another first for the industry, our unique NexStarTM crane management system is able to give full power and entire proportional control for precise load handling with the convenience of being remote-controlled. When combined with our unique Titan crane bodies, this cutting-edge technology enables Auto Crane to be the most productive and safest service crane on the market.
Since we opened our doors in 1958, our only mission has been to develop items that provide the greatest possible value to our clientele in a variety of important ways. It is both our desire and our passion to continue to be at the forefront of the most ground-breaking innovations in our business. You can rely on Auto Crane for many years to come since the company has led the industry for more than 60 years.
