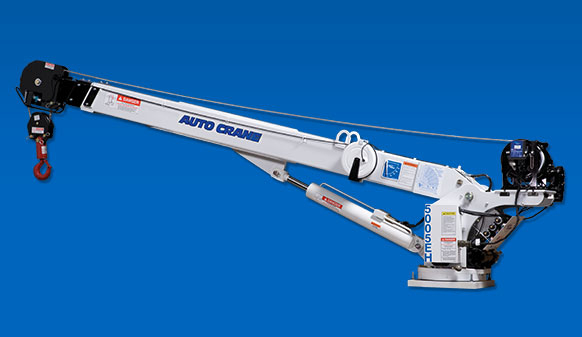

Auto Crane | Electric Over Hydraulic Crane (5005EH Series)

AUTC:5005EH Series-EQP

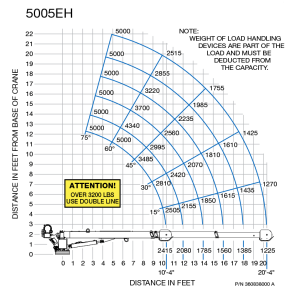

Electric Over Hydraulic Crane with a 25,000 ft lb (3.5 ton-m); maximum lifting capacity of 5,000 lb (2,268 kg) at 5 ft. (1.5 m)

Please Call for Availability
800-346-1704

Description

Electric Over Hydraulic Crane with a 25,000 ft lb (3.5 ton-m); maximum lifting capacity of 5,000 lb (2,268 kg) at 5 ft. (1.5 m)
  • Automatic overload protection system Keeps people, equipment, and loads safer
  • Full power extension to 20' 4" (6.2 m) Ease of use
  • Full, continuous power rotation 360 Degrees movement for maximum versatility in lifting
  • Capable of lifting at 100% in all positions on Titan crane bodies with outriggers Maximized capacity for lifting
  • -14 Degrees to +75 Degrees boom elevation Greater work area capability with maximum range of working angle limits
  • Small sheave Fits into tighter spaces
  • 80 ft (24.3 m) of 5/16" (8 mm) aircraft quality cable
  • Stowed Boom Length: 13' 1" (3.98 m)
  • Extended Boom Length: Width: 1' 9.75" (.55 m)
  • Width: 1' 9.75" (.55 m)
  • Height: 2' 11.75" (.90 m)
  • Base Plate Dimensions: 16.75" x 16.75" (.43 m x .43 m)
  • Single Line Speed: 36 ft/min (10.97 m/min)
  • 2.5 hp 24V DC electric hoist motor
  • OSHA 1910.180 ANSI B30.5
  • Requirements- Truck must be equipped with 738896-000 outriggers or equal. 14,500 GVWR minimum chassis requirement. (Does not include bodies and accessories). Battery Information: 575 amp cold cranking rating, 130 minute reserve capacity, maintenance type battery required for 12/24 volt DC operation. 75 amp minimum truck alternator required. Two batteries required..

Warranty

Limited two-year factory warranty

Application List

Universal

General Copy

Tulsa, Oklahoma is home to Auto Crane's headquarters. We develop, design, and produce a broad range of truck-mounted electric and hydraulic cranes, crane bodies, crane control technology, and accessories. Our cranes may be powered by either hydraulic or electric systems. Our company's name and wares are well-known and widely utilized across the industrial sectors of the global economy, including the energy, mining, construction, forestry, and railroad industries, among others. The Auto Crane brand is an American one, and all of their products are still proudly manufactured in the United States.
Another first for the industry, our unique NexStarTM crane management system is able to give full power and entire proportional control for precise load handling with the convenience of being remote-controlled. When combined with our unique Titan crane bodies, this cutting-edge technology enables Auto Crane to be the most productive and safest service crane on the market.
Since we opened our doors in 1958, our only mission has been to develop items that provide the greatest possible value to our clientele in a variety of important ways. It is both our desire and our passion to continue to be at the forefront of the most ground-breaking innovations in our business. You can rely on Auto Crane for many years to come since the company has led the industry for more than 60 years.
