Auto Crane | Titan Crane Body (Titan 16)

AUTC:Titan 16-EQP

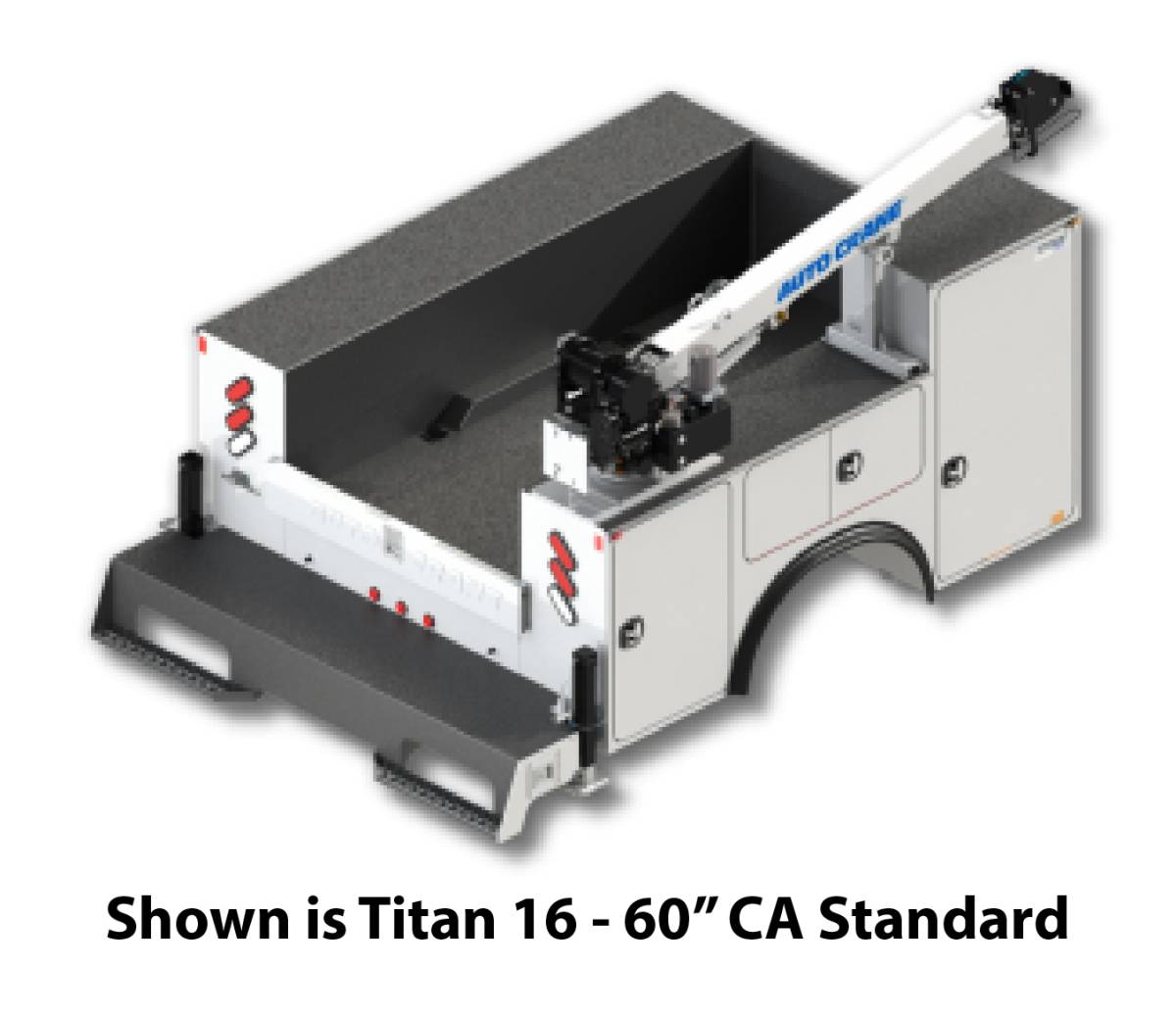

Titan Crane Body with a capacity of 16,000 ft lb (2.21 tM)

Please Call for Availability
800-346-1704

Description

Patented one-piece 10 gauge side-pack design for rugged, offroad use minimizes weld seams for less cracking and rust. Integral crane box transfers load directly to outriggers reducing stress on the chassis -- reinforced up to 16,000 ft lb (2.21 tM). Internal stainless steel hinges reduce potential corrosion points. Double-paneled galvanneal doors for added strength. Fully undercoated for rust prevention.
  • Double-paneled galvanneal doors for added strength
  • Gas shock door closers reduce wear-and-tear
  • Rounded door corners throughout reduce effect of load on stress points
  • Flush door panels with bulb seal gasket and functional full-length drip rail for dryer compartments
  • Fully stable throughout lifting radius of the crane for maximized crane capacity
  • Large, flush-mounted, angled, stop-tail-turn lights for better visibility
  • Four or six heavy-duty tie downs for payload security
  • Three-point latching system provides secure door closures
  • Fenderettes add protection to the body at the wheel well
  • Unobstructed crane compartment maximizes usable cargo space
  • Double-paneled, slammable tailgate for one hand ease-of-use
  • Complete shelf package to optimize storage needs
  • Applicable Service Cranes: 2003, 3203H, 3203EH, 4004EH
  • Options- Manual outriggers. 8", 12" or 20" bumper (200mm, 305mm, 508mm). Receiver hitch. Rope and dome lights for compartments. Flood lights. Crane boom support. Master locking system. Grab handles. Oxy/acetylene bottle holder
  • Substructure: Interlocking channel frame reduces weight while increasing rigidity
  • Chasis Requirements- 10,900 GVWR 4944 kg GVM. 34" (864 mm) frame rail width. Dual rear wheels -- 93.75" (2.38 m) overall width. Truck stability will govern the actual approved working loads that will apply at different points of rotation. (Actual chassis requirements should be determined by adding weight of body, crane, accessories, and anticipated cargo).

Warranty

Limited two-year factory warranty

Application List

Universal

General Copy

Tulsa, Oklahoma is home to Auto Crane's headquarters. We develop, design, and produce a broad range of truck-mounted electric and hydraulic cranes, crane bodies, crane control technology, and accessories. Our cranes may be powered by either hydraulic or electric systems. Our company's name and wares are well-known and widely utilized across the industrial sectors of the global economy, including the energy, mining, construction, forestry, and railroad industries, among others. The Auto Crane brand is an American one, and all of their products are still proudly manufactured in the United States.
Another first for the industry, our unique NexStarTM crane management system is able to give full power and entire proportional control for precise load handling with the convenience of being remote-controlled. When combined with our unique Titan crane bodies, this cutting-edge technology enables Auto Crane to be the most productive and safest service crane on the market.
Since we opened our doors in 1958, our only mission has been to develop items that provide the greatest possible value to our clientele in a variety of important ways. It is both our desire and our passion to continue to be at the forefront of the most ground-breaking innovations in our business. You can rely on Auto Crane for many years to come since the company has led the industry for more than 60 years.
