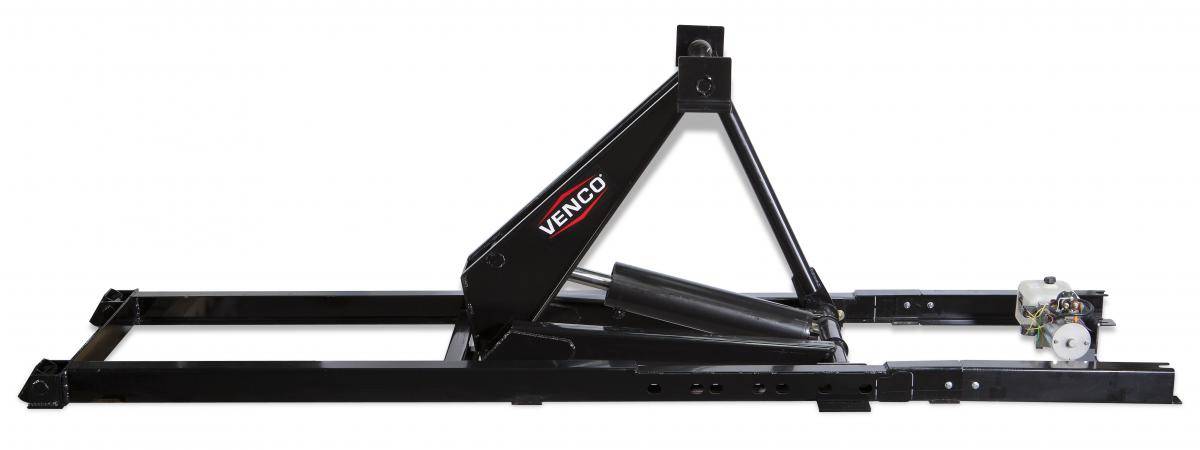

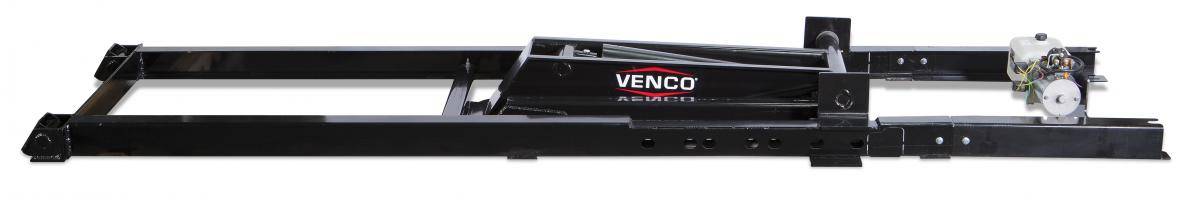

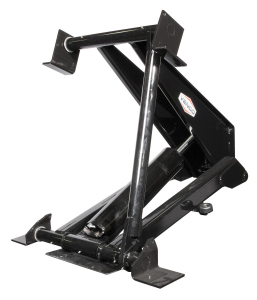

Venturo Hoists (VC520)
VENC:VC520-EQP
Dump Hoist
Please Call for Availability
800-346-1704
Description
NTEA Class D/40 hoist, featuring 5 " bore x 20 " stroke cylinder. Available with or without subframe.
- Pre-installed self-locating body prop
- Fits 29 1/2" – 34" truck frames
- 7" Subframe mounting height
- Includes 4" Subframe rail
- Conversion Class D
- Dump Class 40
- High pressure, double-acting cylinder with 5" bore x 20" stroke and multi-hard chromed and polished piston rod
- Pumps: Electric single-acting, 6 qt. reservoir Electric double-acting, 4 qt. reservoir 4 piston PTO driven, 7/8" square shaft, 15 qt. reservoir Direct mount gear PTO driven, SAE “A” 2 bolt flange, 5/8" -9 spline shaft 9 qt. reservoir
- Operating pressure: 3000/1000 PSI
- Weight: VC520: 450 lbs. VC520 w/SF: 570 lbs.
