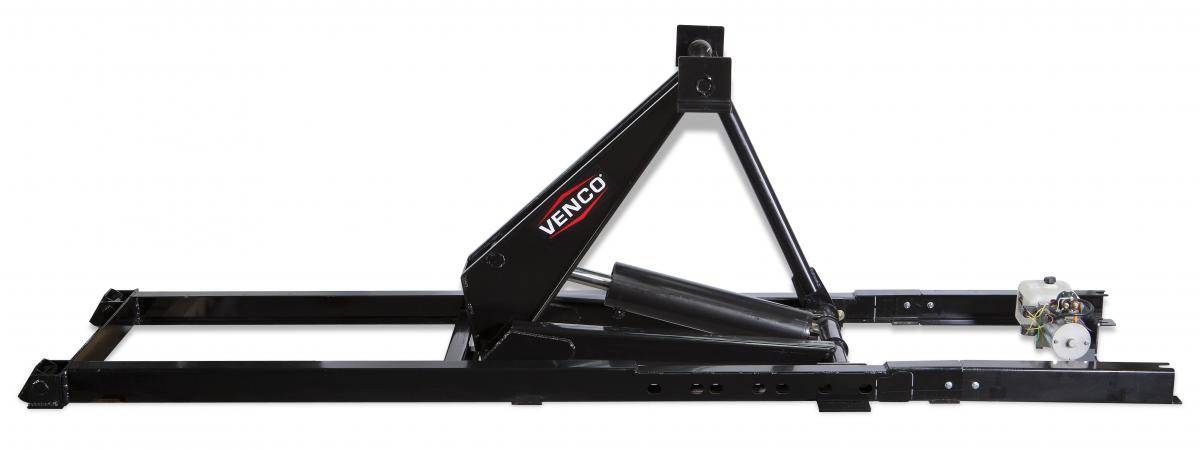

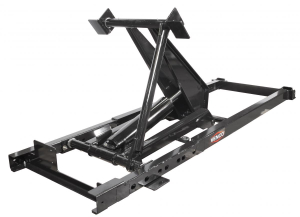

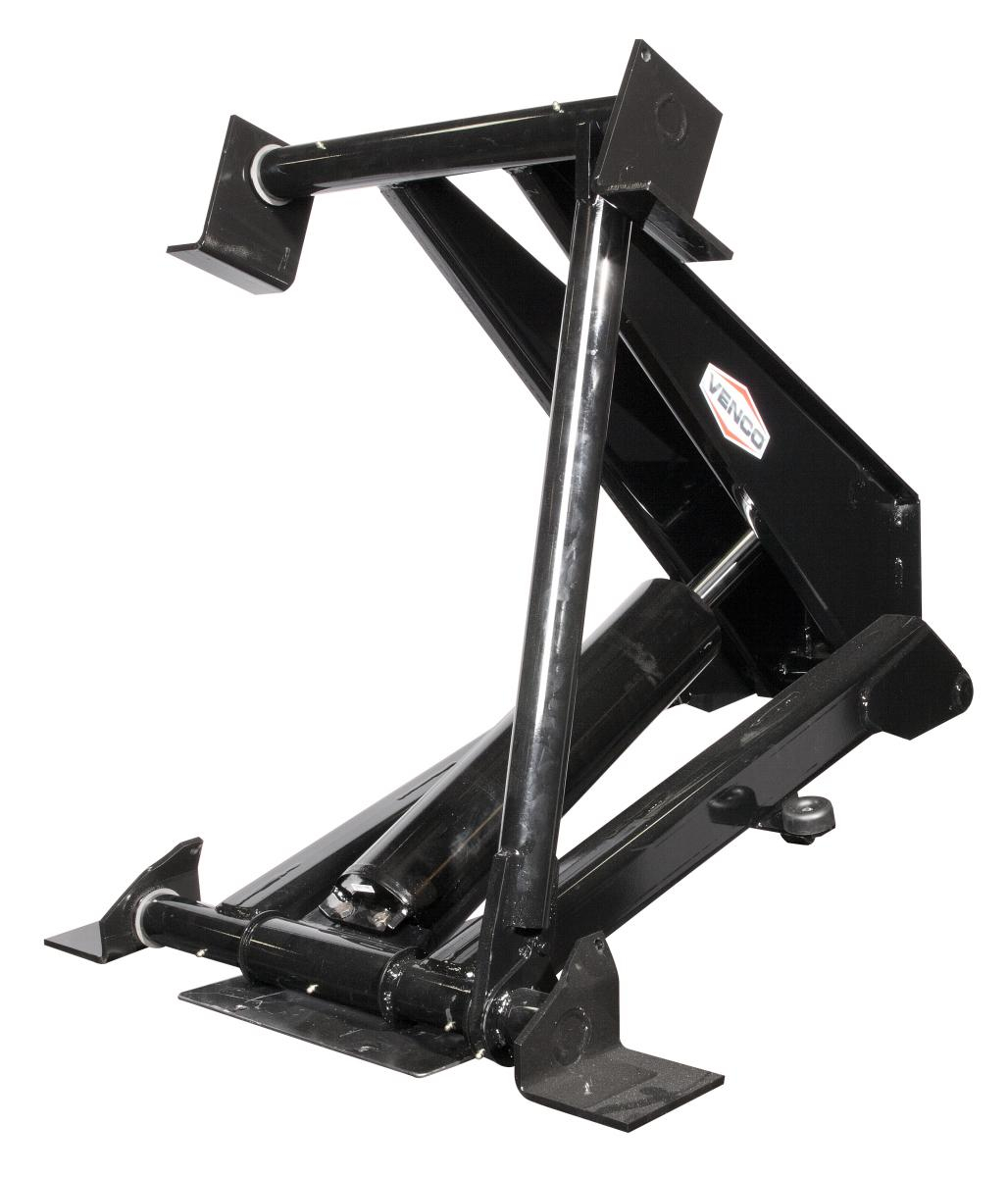

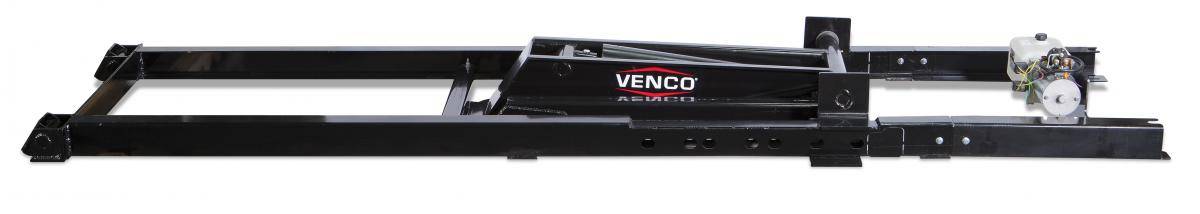

Venturo Hoists (VC620)
VENC:VC620-EQP
Dump Hoist
Please Call for Availability
800-346-1704
Description
NTEA Class E/50 hoist, featuring 6" bore x 20" stroke cylinder. Available with or without subframe.
- Pre-installed self-locating body prop
- Fits 29 1/2" – 34" truck frames
- 9-3/4" Subframe mounting height
- Includes 4" Subframe rail
- Conversion Class E
- Dump Class 50
- High pressure, double-acting cylinder with 6" bore x 20" stroke and multi-hard chromed and polished piston rod
- Pumps: Electric single-acting, H.D. motor, 8 qt. reservoir Electric double-acting, H.D. motor, 4 qt. reservoir 8 piston PTO driven, 7/8" square shaft, 21 qt. reservoir Direct mount gear PTO driven, SAE “A” 2 bolt flange, 5/8" -9 spline shaft 9 qt. reservoir
- Operating pressure: 3000/1000 PSI
- Weight: VC620: 625 lbs. VC620 w/SF: 745 lbs.
Product Series
Application List
Universal
Details
Shipping Information
- Item Requires Shipping
- 625.0 lbs.
